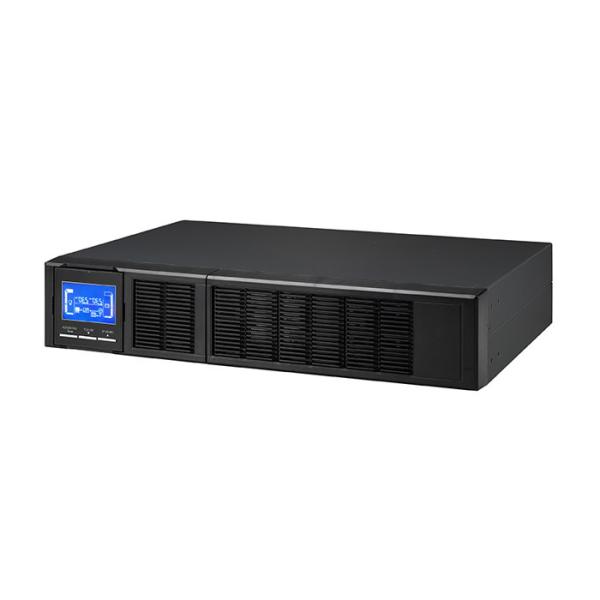

    Small 220V 1800w 19 Inch Rack Mount UPS Battery Backup Power Supply

    Ask Lasest Price
    Brand Name : ZGD
    Model Number : C2KRS
    Certification : CE ROHS
    Price : $225.00/Sets 1-9 Sets
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Set/Sets per Month
    Delivery Time : 7~15 working days
    • Product Details
    • Company Profile

    Small 220V 1800w 19 Inch Rack Mount UPS Battery Backup Power Supply

    Small 220V 1800w 19 Inch Rack Mount UPS Battery Backup Power Supply


    Single Phase 220V 1800w 2000va Rack Mount Ups 19 Inch Systems


    Wide input voltage and frequency range

    Voltage range: 90V~300V, frequency range: 40~70Hz,durable in terrible power environment, reducing battery discharge and prolonging the battery service life.


    ZGD single in single out high frequency on-line UPS, with perfect detection and protection functions; 19 inch standard rack type, small size, light weight, high efficiency. Humanized design of monitoring software, easy to UPS centralized monitoring and remote monitoring. With LED display or LCD display panel, users can intuitively understand the operation status of UPS.


    Application area

    Office, personal computer, information technology equipment, automatic security system and other non-industrial site data management center, host system, integrated computer network, ISP service providers, telecommunications, computer room, etc.


    Specification

    Model

    C2KRS

    Phase

    1phase 2wire+PE

    Capacity

    2KVA

    Input

    Nominal Input Voltage

    220/230/240VAC

    Input Voltage Range

    90V~300V Halfload 176V~300V Full Load

    Input Frequency Range

    40~70Hz

    Input Power Factor

    0.99 @Full load

    Output

    Output Voltage

    230V(220/240/208V Selectable)

    Output Voltage Regulation

    1%

    Output Frequency (Sync.Mode)

    46Hz~54Hz; 57Hz~63Hz

    Output Frequency (Bat.Mode)

    50Hz+/-0.05Hz 60Hz+/-0.05Hz

    Output THDv%

    2% linear Load 6% Non-linear Load

    Output Waveform

    Pure Sinewave

    Transfer Time

    Line mode ↔ Bat Mode

    0ms

    Inv ↔ Bypass Mode

    <4ms

    Battery & Charger

    Battery Voltage/Capacity

    72V/96V external battery

    Battery Type

    Valve Regulated Maintenance Free Lead Acid (VRLA) for Standard Model with internal battery

    Recharge time

    Subject to external battery config

    Max recharge current

    4A

    Floating charge Votlage

    81.8V/109.2V
